MySQL 表结构生成 Markdown 文档

背景

在实施软件工程的时候,当要将某一版本归档时,需要汇总的文档要求还是比较高的、各类文档齐全,包括项目架构、项目安装、接口等文档,而数据库表结构说明文档亦属于其一。记得很早之前想找一个可以导出 MySQL 数据库表结构说明文档的工具,生态上的这种工具是有的、只不过并没有一个使我比较满足的。当然、看个人所需,我需要一个可以导出 markdown 文档的。

于是 mysql_markdown 就出现了、应用而生。它是一款基于 go 语言编写的一个命令行工具,适用于 LinuxMacWindows 等平台。那么它可以做什么?他只有一个功能、就是生成数据库表结构说明文档,格式为 markdown
mysql_markdown.github
mysql_markdown.download

MySQL 表结构生成 Markdown 文档

安装

安装方式.1
# curl install
curl -fsSL "https://raw.githubusercontent.com/alicfeng/mysql_markdown/master/install" | sudo sh
安装方式.2
# build install
git clone https://github.com/alicfeng/mysql_markdown.git
cd mysql_markdown
go get "github.com/go-sql-driver/mysql"
go build -o /usr/local/bin/mysql_markdown mysql_markdown.go
chmod +x /usr/local/bin/mysql_markdown

使用

# 帮助函数
➜  mysql_markdown -h
flag needs an argument: -h
Usage: mysql_markdown [options...]
--help  This help text
-h      host.     default 127.0.0.1
-u      username. default root
-p      password. default root
-d      database. default mysql
-P      port.     default 3306
-c      charset.  default utf8
-o      output.   default current location

# 简单使用
➜ mysql_markdown -p samego -d samego
mysql connected ...
1/8 the demo table is making ...
2/8 the failed_jobs table is making ...
3/8 the migrations table is making ...
4/8 the password_resets table is making ...
5/8 the roles table is making ...
6/8 the user table is making ...
7/8 the userinfo table is making ...
8/8 the users table is making ...
mysql_markdown finished ...

md2anyDoc#

md 转其它类型的文档推荐使用 typora 工具 它支持如下转换格式

  • md2pdf
  • md2html
  • md2html(without styles)
  • md2word
  • md2rtf
  • md2openOffice
  • md2Epub
  • md2latex
  • md2MediaWiki
  • md2reStructureText
  • md2textile
  • md2OPML
  • md2png

文档页面效果

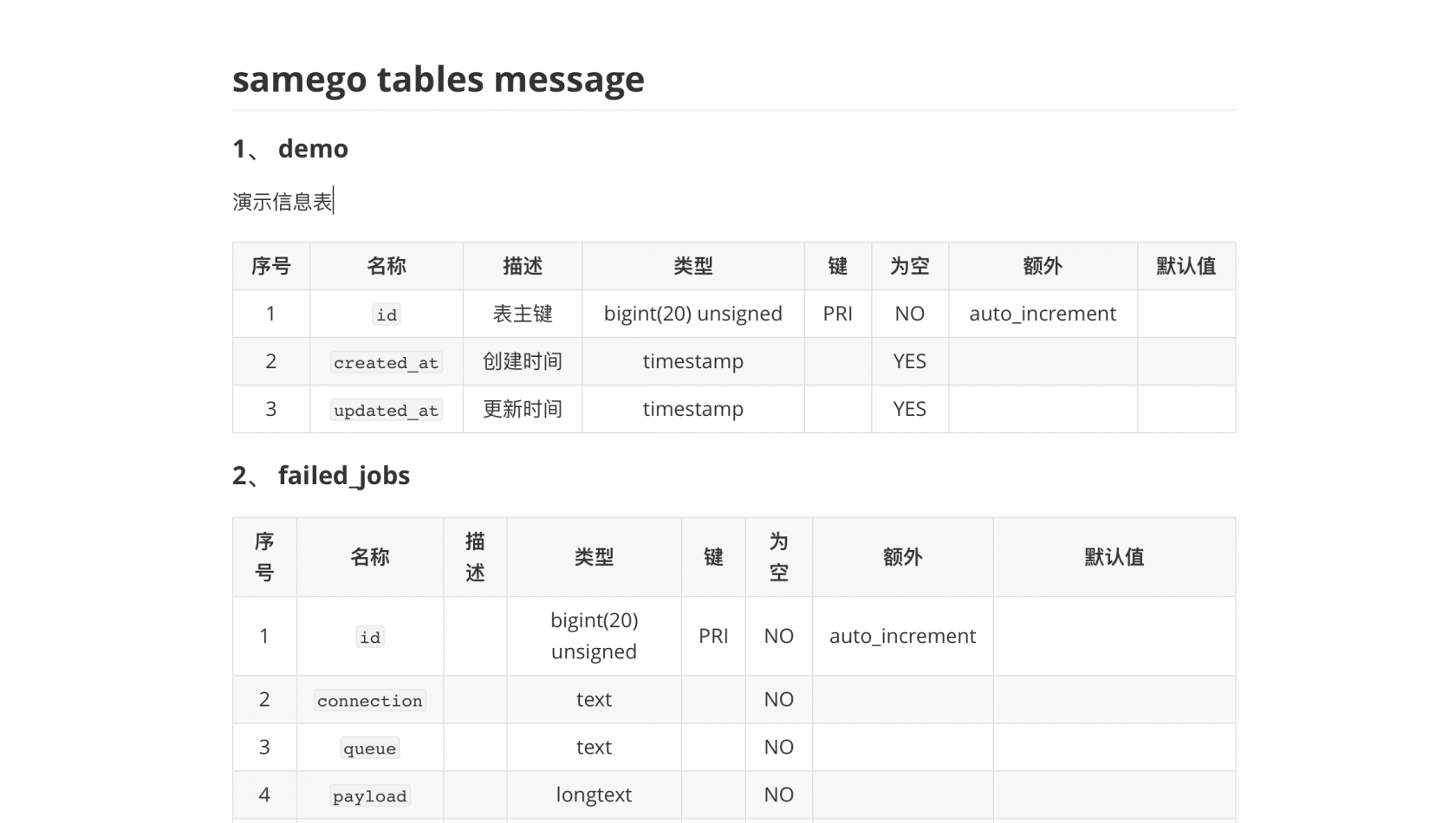

生成的 MD 文件

[![MySQL 表结构生成 Markdown 文档](https://cache.picdn.cn/cache/v28OfsqA9o.png%21large

MD 文件转 PDF

[MySQL 表结构生成 Markdown 文档
